Conklin Single-Ply Membranes
Shield Your Building with the best
Premium PVC and TPO membrane roofing systems
Single-Ply Membrane Systems
Premium polyvinyl chloride (PVC) and thermoplastic polyolefin (TPO) membrane systems that offer outstanding reflectivity and are resistant to a broad range of chemicals, helping extend the life of the commercial roof. During installation, single-ply membranes rolls are overlapped and heat welded together along with mechanically-fastening or fully-adhering with adhesive to form an exceptionally durable, waterproof, and energy-efficient shield that will deliver unsurpassed building protection for years to come.
Advantages of Conklin’s Single-Ply Membrane Systems
Stops leaks with superior waterproofing
Provides first-rate resistance to hail and wind
UL fire rated (Flexion XL)
Tremendous tear and puncture resistance
Lowers utility costs by reflecting up to 85% of the suns heat
Can be applied in all seasons
Kevlar selvage fastening edge for powerful holding strength and wind resistance
This ENERGY STAR-rated, thermoplastic PVC membrane provides fantastic protection from the elements. Its unique thermoplastic formulation has been reinforced with DuPont® Elvaloy® for superior strength, durability, and flexibility. It is naturally fire resistant and has been recognized by major code approval agencies. Flexion XL® is an excellent choice for both new and re-roofing applications. 60 mil thickness • High-tensile strength and puncture resistance • Heat-welded seams • Class A fire-rated
Flexion XL® System
This rugged, thermoplastic polyolefin membrane (TPO) provides phenomenal defense from the environment. Its exclusive TPO design has been modified with a Kevlar®-reinforced fastening edge, non-moisture-wicking scrim material, and DuPont® Elvaloy® technology for exceptional strength and energy-efficiency. OUTPOST is a superb and cost-efficient choice for new commercial roofing construction and also as a commercial reroofing solution. 60 mil thickness • High-tensile strength and puncture resistance • Heat-welded seams provide excellent strength • UL 790 listed
OUTPOST® TPO
Securely attach board stock
Roll out membrane overlapping 6”
Hand weld detail areas

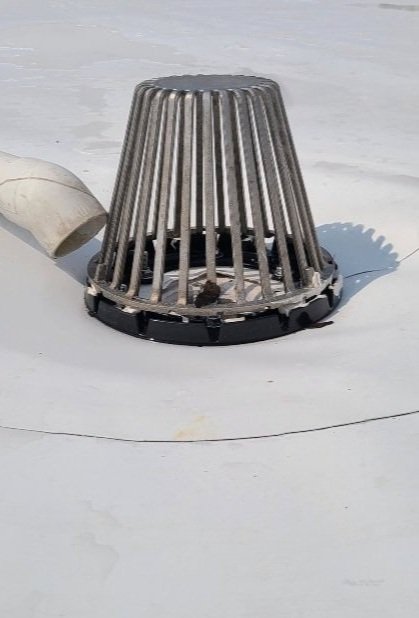

Install drain covers
Weld seams with robotic welder
Fully adhere or mechanically fasten membrane
Completed membrane roof system
Single-Ply Overlay Over Metal
Metal roof retro-fits are a popular solution for leaking or inadequately insulated metal roofs. TPO/PVC overlays are a long-term solution that adds insulation value and creates an aesthetically pleasing new roof. Flute fillers are used to fill between the metal ribs. Additional boardstock insulation is then added to create a smooth surface for the new roofing membrane. Additional layers of insulation board can be added until the desired R-value is reached. The insulation boards are mechanically fastened to the metal roof below. A new TPO or PVC roofing membrane is then installed and mechanically fastened via plates and screws. All seams are then heat welded and all roof edges properly terminated. During the installation of this roofing system, the building’s interior is never exposed allowing business below to continue with minimal disruption.
COOL ROOFING SYSTEMS
COOL ROOFING SYSTEMS
The average roof absorbs a large portion of the sun’s rays as heat. Conklin’s white, single-ply membrane systems reflect up to 85% of the sun’s heat, cooling your building and saving you significant dollars in air conditioning costs.
